Trying out Kubernetes with K3S, Calico, Rancher and Longhorn
Overview
I wanted to try out Kubernetes for the first time, before this I have had no experience with it.
This is going to be quite long, in addition to that, the first half of this was written with all the nodes running on potato hardware. The nodes were migrated to a much better host half way through writing this.
By no means is this a guide, just some notes.
Provisioning Resources
I provisioned 3 Ubuntu Server machines with the following specs:
- Boot disk: 64gb
- Storage disk at
/storage: 128gb - 32gb memory (memory ballooning off, KSM off)
- 12 cores (pinned to dedicated cores w/ NUMA on)
1. Installation of K3S
Installed K3S on the first node:
curl -sfL https://get.k3s.io | INSTALL_K3S_EXEC="--cluster-init --flannel-backend=none --disable-network-policy" sh -Grabbed the node token with sudo cat /var/lib/rancher/k3s/server/node-token
On nodes 2 and 3:
curl -sfL https://get.k3s.io | INSTALL_K3S_EXEC="--flannel-backend=none --disable-network-policy --server https://10.1.102.4:6443" K3S_TOKEN="K10...c3" sh -Checked status:
kubectl get nodes
NAME STATUS ROLES AGE VERSION
ny-pbg-k3s-node-01 Ready control-plane,etcd 44h v1.36.4+k3s1
ny-pbg-k3s-node-02 Ready control-plane,etcd 44h v1.36.4+k3s1
ny-pbg-k3s-node-03 Ready control-plane,etcd 44h v1.36.4+k3s12.1. Calico: Setup
Installed Helm on node 1:
curl https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3 | bashAdded Calico repository:
helm repo add projectcalico https://docs.tigera.io/calico/charts
helm repo updatePointed Helm to the K3s config:
export KUBECONFIG=/etc/rancher/k3s/k3s.yaml
echo 'export KUBECONFIG=/etc/rancher/k3s/k3s.yaml' >> ~/.bashrc
source ~/.bashrcInstalled Tiegera Operator:
helm install calico projectcalico/tigera-operator \
--version v3.31.0 \
--namespace tigera-operator \
--create-namespace
NAME: calico
LAST DEPLOYED: Fri Aug 28 23:49:28 2026
NAMESPACE: tigera-operator
STATUS: deployed
REVISION: 1
TEST SUITE: NoneI used v3.31.0 for ease of installation because of issue #12860
Ensured pod in the tigera-operator namespace was running:
kubectl get pods -n tigera-operator
NAME READY STATUS RESTARTS AGE
tigera-operator-76b59488db-89szb 1/1 Running 0 89sCreated calico/installation.yaml with contents:
apiVersion: operator.tigera.io/v1
kind: Installation
metadata:
name: default
spec:
calicoNetwork:
ipPools:
- name: home-pool
cidr: 10.10.0.0/20
encapsulation: None # disable all encapsulation types
natOutgoing: Enabled
nodeSelector: all()
blockSize: 26
bgp: Enabledthen
kubectl apply -f calico/installation.yaml
Watched the pods create live with kubectl get pods -n calico-system -w
Waited ~10 minutes and confirmed pods are all Running:
sudo kubectl get pods -n calico-system
NAME READY STATUS RESTARTS AGE
calico-apiserver-6c4d97bf86-5hk42 1/1 Running 3 (116s ago) 9m8s
calico-apiserver-6c4d97bf86-gkz82 1/1 Running 0 9m8s
calico-kube-controllers-58cf6cd75b-7xs4v 1/1 Running 0 9m5s
calico-node-47pc5 1/1 Running 0 9m6s
calico-node-8dbkp 1/1 Running 1 (6m18s ago) 9m6s
calico-node-kqrtr 1/1 Running 0 9m6s
calico-typha-6694f545b9-7m2rl 1/1 Running 0 9m6s
calico-typha-6694f545b9-gt9z4 1/1 Running 0 8m56s
goldmane-95bd7cc99-z6fb4 1/1 Running 0 9m8s
whisker-f54f84859-5rzbx 2/2 Running 0 3m7s2.2. Calico: FortiGate eBGP peering
Created a config file for the BGP configuration:
apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
name: default
spec:
logSeverityScreen: Info
nodeToNodeMeshEnabled: false
asNumber: 65401Applied config:
kubectl apply -f calico/bgpconfig.yaml
bgpconfiguration.projectcalico.org/default createdCreated bgppeer.yaml config:
apiVersion: projectcalico.org/v3
kind: BGPPeer
metadata:
name: fortigate-peer
spec:
peerIP: 10.1.102.1
asNumber: 65400Applied config:
kubectl apply -f bgppeer.yaml
bgppeer.projectcalico.org/fortigate-peer createdConfirmed configs are present:
kubectl get bgpconfiguration
NAME CREATED AT
default 2026-08-29T00:38:50Z
kubectl get bgppeer
NAME CREATED AT
fortigate-peer 2026-08-29T01:22:54ZInstall Calicoctl tool:
curl -L https://github.com/projectcalico/calico/releases/download/v3.31.0/calicoctl-linux-amd64 -o calicoctl
chmod +x calicoctl
sudo mv calicoctl /usr/local/bin/Add BGP neighbors in FortiGate:
config router bgp
config neighbor
edit "10.12.0.2"
set remote-as 65400
set route-reflector-client enable
next
edit "10.1.102.4"
set name "k3s-node-01"
set remote-as 65401
next
edit "10.1.102.5"
set name "k3s-node-02"
set remote-as 65401
next
edit "10.1.102.6"
set name "k3s-node-03"
set remote-as 65401
next
end
endCheck Calico status:
calicoctl node status
Calico process is running.
IPv4 BGP status
+--------------+-----------+-------+----------+-------------+
| PEER ADDRESS | PEER TYPE | STATE | SINCE | INFO |
+--------------+-----------+-------+----------+-------------+
| 10.1.102.1 | global | up | 01:30:57 | Established |
+--------------+-----------+-------+----------+-------------+
IPv6 BGP status
No IPv6 peers found.Confirm FortiGate has installed routes learned from Calico:
get router info routing-table all
...
B 10.10.0.192/26 [20/0] via 10.1.102.5 (recursive is directly connected, vlan102), 00:02:35, [1/0]
B 10.10.7.192/26 [20/0] via 10.1.102.6 (recursive is directly connected, vlan102), 00:02:34, [1/0]
B 10.10.10.0/26 [20/0] via 10.1.102.4 (recursive is directly connected, vlan102), 00:02:36, [1/0]
...2.3. Calico: Service Address Configuration
Created a service pool config:
apiVersion: projectcalico.org/v3
kind: IPPool
metadata:
name: service-pool
spec:
cidr: 10.10.99.0/28
blockSize: 28
allowedUses:
- LoadBalancerApply it:
kubectl apply -f calico/servicepool.yaml
ippool.projectcalico.org/service-pool createdModify the original bgp config to include serviceLoadBalancerIPs:
apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
name: default
spec:
logSeverityScreen: Info
nodeToNodeMeshEnabled: false
asNumber: 65401
serviceLoadBalancerIPs:
- cidr: 10.10.99.0/28Apply it:
kubectl apply -f calico/bgpconfig.yaml
bgpconfiguration.projectcalico.org/default configuredVerify configs took:
kubectl get ippool service-pool -o yaml
apiVersion: projectcalico.org/v3
kind: IPPool
metadata:
annotations:
kubectl.kubernetes.io/last-applied-configuration: |
{"apiVersion":"projectcalico.org/v3","kind":"IPPool","metadata":{"annotations":{},"name":"service-pool"},"spec":{"allowedUses":["LoadBalancer"],"blockSize":28,"cidr":"10.10.99.0/28"}}
creationTimestamp: "2026-08-29T16:51:52Z"
name: service-pool
resourceVersion: "247656"
uid: 39d21198-8064-4eaf-a717-308b08f7f001
spec:
allowedUses:
- LoadBalancer
assignmentMode: Automatic
blockSize: 28
cidr: 10.10.99.0/28
ipipMode: Never
nodeSelector: all()
vxlanMode: Neverkubectl get bgpconfiguration default -o yaml
apiVersion: projectcalico.org/v3
kind: BGPConfiguration
metadata:
annotations:
kubectl.kubernetes.io/last-applied-configuration: |
{"apiVersion":"projectcalico.org/v3","kind":"BGPConfiguration","metadata":{"annotations":{},"name":"default"},"spec":{"asNumber":65401,"logSeverityScreen":"Info","nodeToNodeMeshEnabled":false,"serviceLoadBalancerIPs":[{"cidr":"10.10.99.0/28"}]}}
creationTimestamp: "2026-08-29T00:38:50Z"
name: default
resourceVersion: "247690"
uid: 19442b05-213d-4d4d-ba72-2adf60242ef9
spec:
asNumber: 65401
logSeverityScreen: Info
nodeToNodeMeshEnabled: false
serviceLoadBalancerAggregation: Enabled
serviceLoadBalancerIPs:
- cidr: 10.10.99.0/282.4. Calico: Testing Service IPs
I will deploy a test app against the cluster to ensure an IP address is assigned in the service pool, advertised up to the FortiGate and is reachable.
I will be using Nginx to test.
Create the deployment for the test:
kubectl create deployment nginx-test --image=nginx
deployment.apps/nginx-test createdExpose the app:
kubectl expose deployment nginx-test --port=80 --type=LoadBalancer
service/nginx-test exposedConfirm app has an EXTERNAL-IP entry:
kubectl get svc nginx-test
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
nginx-test LoadBalancer 10.43.211.112 10.10.99.1 80:31556/TCP 8m57sConfirm range is advertised back to the FortiGate:
get router info routing-table all
...
B 10.10.0.192/26 [20/0] via 10.1.102.5 (recursive is directly connected, vlan102), 15:25:46, [1/0]
B 10.10.7.192/26 [20/0] via 10.1.102.6 (recursive is directly connected, vlan102), 15:25:45, [1/0]
B 10.10.10.0/26 [20/0] via 10.1.102.4 (recursive is directly connected, vlan102), 15:25:47, [1/0]
B 10.10.99.0/28 [20/0] via 10.1.102.6 (recursive is directly connected, vlan102), 00:04:48, [1/0]
...Confirm app is accessible on my local machine:
curl 10.10.99.1
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
...Confirm Traefik is accessible too:
kubectl get svc -n kube-system
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kube-dns ClusterIP 10.43.0.10 <none> 53/UDP,53/TCP,9153/TCP 16h
metrics-server ClusterIP 10.43.120.44 <none> 443/TCP 16h
traefik LoadBalancer 10.43.57.44 10.10.99.0 80:30831/TCP,443:32636/TCP 16hcurl 10.10.99.0
404 page not found3. DNS Setup and Traefik testing
I run a Technitium DNS cluster, so I will be using that to respond for DNS for this lab
I created a primary zone called k3s-lab.homeblab.com, and a wildcard A record to point to Traefik *.k3s-lab.homeblab.com -> 10.10.99.0
My thought was that apps can be individually exposed if they do not need to be proxied, but most apps will go through the proxy, in which more specific DNS records can be created when that happens.
Testing the DNS changes to ensure that Traefik is responding:
404 page not foundNext I’ll create an IngressRoute for Traefik to route a request to the Nginx test based off the requested host header
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
name: nginx-test
namespace: default
spec:
entryPoints:
- web
routes:
- match: Host(`nginx-test.k3s-lab.homeblab.com`)
kind: Rule
services:
- name: nginx-test
port: 80Apply it:
kubectl apply -f nginx-test/nginx-ingressroute.yaml
ingressroute.traefik.io/nginx-test createdTesting:
curl nginx-test.k3s-lab.homeblab.com
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
...4. Persistant Storage Setup
Most apps I’ll be running in the lab will be stateful, which will require persistant storage.
Since this is running K3S, Rancher already has a program called Longhorn, which I will be using here.
I read online that it might not be the most performant system for distrubuted stateful storage, but if that becomes an issue, I might switch to a centeralized storage system instead.
Install pre-reqs on each node:
sudo apt update
sudo apt install -y open-iscsi nfs-common
sudo systemctl enable --now iscsidPrep:
lsmod | grep iscsi_tcp
sudo modprobe iscsi_tcp
echo "iscsi_tcp" | sudo tee -a /etc/modules-load.d/modules.conf
lsmod | grep iscsi_tcp
iscsi_tcp 24576 0
libiscsi_tcp 32768 1 iscsi_tcp
libiscsi 77824 2 libiscsi_tcp,iscsi_tcp
scsi_transport_iscsi 172032 4 libiscsi_tcp,iscsi_tcp,libiscsi
sudo systemctl status iscsid
● iscsid.service - iSCSI initiator daemon (iscsid)
Loaded: loaded (/usr/lib/systemd/system/iscsid.service; enabled; preset: enabled)
Active: active (running) since Sat 2026-08-29 17:29:55 UTC; 7min ago
TriggeredBy: ● iscsid.socket
Docs: man:iscsid(8)
Process: 166877 ExecStartPre=/usr/lib/open-iscsi/startup-checks.sh (code=exited, status=0/SUCCESS)
Process: 166881 ExecStart=/usr/sbin/iscsid (code=exited, status=0/SUCCESS)
Main PID: 166883 (iscsid)
Tasks: 2 (limit: 18956)
Memory: 2.7M (peak: 2.9M)
CPU: 224ms
CGroup: /system.slice/iscsid.service
├─166882 /usr/sbin/iscsid
└─166883 /usr/sbin/iscsid
Aug 29 17:29:55 ny-pbg-k3s-node-01 systemd[1]: Starting iscsid.service - iSCSI initiator daemon (iscsid)...
Aug 29 17:29:55 ny-pbg-k3s-node-01 iscsid[166881]: iSCSI logger with pid=166882 started!
Aug 29 17:29:55 ny-pbg-k3s-node-01 systemd[1]: Started iscsid.service - iSCSI initiator daemon (iscsid).
Aug 29 17:29:56 ny-pbg-k3s-node-01 iscsid[166882]: iSCSI daemon with pid=166883 started!
sudo systemctl status multipathd
● multipathd.service - Device-Mapper Multipath Device Controller
Loaded: loaded (/usr/lib/systemd/system/multipathd.service; enabled; preset: enabled)
Active: active (running) since Sat 2026-08-29 01:05:42 UTC; 16h ago
TriggeredBy: ● multipathd.socket
Main PID: 445 (multipathd)
Status: "up"
Tasks: 7
Memory: 21.9M (peak: 22.5M)
CPU: 18.533s
CGroup: /system.slice/multipathd.service
└─445 /sbin/multipathd -d -s
Aug 29 01:05:41 ny-pbg-k3s-node-01 systemd[1]: Starting multipathd.service - Device-Mapper Multipath Device Controller>
Aug 29 01:05:50 ny-pbg-k3s-node-01 multipathd[445]: multipathd v0.9.4: start up
Aug 29 01:05:50 ny-pbg-k3s-node-01 multipathd[445]: reconfigure: setting up paths and maps
Aug 29 01:05:42 ny-pbg-k3s-node-01 systemd[1]: Started multipathd.service - Device-Mapper Multipath Device Controller.
sudo systemctl stop multipathd
sudo systemctl disable multipathd
sudo systemctl stop multipathd.socket
sudo systemctl disable multipathd.socketInstall Longhorn via Helm:
helm repo add longhorn https://charts.longhorn.io
helm repo update
helm install longhorn longhorn/longhorn \
--namespace longhorn-system \
--create-namespace \
--set defaultSettings.defaultDataPath="/storage"
NAME: longhorn
LAST DEPLOYED: Sat Aug 29 17:39:58 2026
NAMESPACE: longhorn-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Longhorn is now installed on the cluster!
Please wait a few minutes for other Longhorn components such as CSI deployments, Engine Images, and Instance Managers to be initialized.
Visit our documentation at https://longhorn.io/docs/The /storage is the mount point for a dedicated 128gb disk on each node.
Wait a few minutes and confirm all are running:
kubectl get pods -n longhorn-system
NAME READY STATUS RESTARTS AGE
csi-attacher-866df4b764-75w56 1/1 Running 0 5m51s
csi-attacher-866df4b764-f4g9p 1/1 Running 0 5m51s
csi-attacher-866df4b764-hcp6m 1/1 Running 0 5m51s
csi-provisioner-5c696f97cd-4rd4v 1/1 Running 0 5m51s
csi-provisioner-5c696f97cd-hgv59 1/1 Running 0 5m51s
csi-provisioner-5c696f97cd-j8cwx 1/1 Running 0 5m51s
csi-resizer-7dd456f456-6rrpx 1/1 Running 0 5m51s
csi-resizer-7dd456f456-7fxrq 1/1 Running 0 5m51s
csi-resizer-7dd456f456-rq648 1/1 Running 0 5m51s
csi-snapshotter-7997dc5fcd-tqrks 1/1 Running 0 5m51s
csi-snapshotter-7997dc5fcd-wn5m8 1/1 Running 0 5m51s
csi-snapshotter-7997dc5fcd-xzhrb 1/1 Running 0 5m51s
engine-image-ei-493e04e7-8kf5z 1/1 Running 0 32m
engine-image-ei-493e04e7-cbr9p 1/1 Running 0 32m
engine-image-ei-493e04e7-sgtdn 1/1 Running 0 32m
instance-manager-a2261654d56025aa4ea4a59cbb4118ac 1/1 Running 0 32m
instance-manager-b113249abab2064b5eab2a310d3ad238 1/1 Running 0 32m
instance-manager-feb7351f40381660ac49cc352969b1fc 1/1 Running 0 32m
longhorn-csi-plugin-258ms 3/3 Running 0 5m51s
longhorn-csi-plugin-88gr7 3/3 Running 0 5m51s
longhorn-csi-plugin-t8xqm 3/3 Running 0 5m51s
longhorn-driver-deployer-8688565869-9prtl 1/1 Running 0 6m2s
longhorn-manager-kn6xd 2/2 Running 0 87s
longhorn-manager-nh2kj 2/2 Running 0 87s
longhorn-manager-q7t7d 2/2 Running 0 87s
longhorn-ui-79b9b8cbdc-4x2bz 1/1 Running 0 33m
longhorn-ui-79b9b8cbdc-xr5cc 1/1 Running 0 33mCheck if Longhorn is healthy:
kubectl get nodes.longhorn.io -n longhorn-system -o wide
NAME READY ALLOWSCHEDULING SCHEDULABLE AGE
ny-pbg-k3s-node-01 True true True 12m
ny-pbg-k3s-node-02 True true True 11m
ny-pbg-k3s-node-03 True true True 17mGet current storageclass:
kubectl get storageclass
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
local-path (default) rancher.io/local-path Delete WaitForFirstConsumer false 17h
longhorn (default) driver.longhorn.io Delete Immediate true 18m
longhorn-static driver.longhorn.io Delete Immediate true 17mSet Longhorn as the only default:
kubectl patch storageclass local-path -p '{"metadata": {"annotations":{"storageclass.kubernetes.io/is-default-class":"false"}}}'
storageclass.storage.k8s.io/local-path patched
ubectl get storageclass
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
local-path rancher.io/local-path Delete WaitForFirstConsumer false 17h
longhorn (default) driver.longhorn.io Delete Immediate true 19m
longhorn-static driver.longhorn.io Delete Immediate true 19mAdd IngressRoute for Longhorn Storage UI:
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
name: longhorn-ipallowlist
namespace: longhorn-system
spec:
ipAllowList:
sourceRange:
- 10.0.0.0/8 # home network range
---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
name: longhorn-ui
namespace: longhorn-system
spec:
entryPoints:
- web
routes:
- match: Host(`longhorn.k3s-lab.homeblab.com`)
kind: Rule
services:
- name: longhorn-frontend
port: 80
sticky:
cookie:
name: longhorn-lb
httpOnly: true
middlewares:
- name: longhorn-ipallowlistApply it:
kubectl apply -f longhorn/longhorn-ingressroute.yaml
kubectl apply -f longhorn/longhorn-ingressroute.yaml
middleware.traefik.io/longhorn-ipallowlist created
ingressroute.traefik.io/longhorn-ui createdThe IngressRoute is scoped down to source IP addresses within 10.0.0.0/8 for now.
Test persistant storage:
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: test-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
---
apiVersion: v1
kind: Pod
metadata:
name: test-pvc-pod
spec:
containers:
- name: test
image: busybox
command: ["sh", "-c", "echo hello from longhorn > /data/test.txt && sleep 3600"]
volumeMounts:
- name: data
mountPath: /data
volumes:
- name: data
persistentVolumeClaim:
claimName: test-pvcApply:
kubectl apply -f longhorn/longhorn-test.yml
persistentvolumeclaim/test-pvc created
pod/test-pvc-pod createdkubectl get pvc test-pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE
test-pvc Bound pvc-3f55df69-ec79-4b1b-a469-2895a0307892 1Gi RWO longhorn <unset> 12skubectl get pod test-pvc-pod -w
NAME READY STATUS RESTARTS AGE
test-pvc-pod 0/1 ContainerCreating 0 12s
test-pvc-pod 0/1 ContainerCreating 0 36s
test-pvc-pod 0/1 ContainerCreating 0 36s
test-pvc-pod 1/1 Running 0 37skubectl exec test-pvc-pod -- cat /data/test.txt
hello from longhornCheck pvc health status:
kubectl get volumes.longhorn.io -n longhorn-system
NAME DATA ENGINE STATE ROBUSTNESS SCHEDULED SIZE NODE AGE
pvc-3f55df69-ec79-4b1b-a469-2895a0307892 v1 attached healthy 1073741824 ny-pbg-k3s-node-03 11mTear down and confirm clean up:
kubectl delete pod test-pvc-pod
pod "test-pvc-pod" deleted from default namespace
kubectl delete pvc test-pvc
persistentvolumeclaim "test-pvc" deleted from default namespace
kubectl get pod test-pvc
Error from server (NotFound): pods "test-pvc" not found
kubectl get pvc test-pvc
Error from server (NotFound): persistentvolumeclaims "test-pvc" not found
kubectl get volumes.longhorn.io -n longhorn-system
No resources found in longhorn-system namespace.NOTE: I had some very strange issues occuring with Longhorn UI and the Driver deployment pod crashing due to some restrictive policies put in place during the installation of Longhorn…
To get to this point, I had to delete the network policies Longhorn put in place with kubectl delete networkpolicy --all -n longhorn-system and remove the disks and re-add them to Longhorn.
The web UI was quite buggy where the websocket connections would fail 99% of the time, in doing this, it has resolved itself, and has resolved the driver deployment pod from crashing.
5. Rancher installation
Install Cert-Manager via Helm:
helm repo add jetstack https://charts.jetstack.io
"jetstack" has been added to your repositories
helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "longhorn" chart repository
...Successfully got an update from the "jetstack" chart repository
...Successfully got an update from the "projectcalico" chart repository
Update Complete. ⎈Happy Helming!⎈
helm install cert-manager jetstack/cert-manager \
--namespace cert-manager \
--create-namespace \
--set crds.enabled=true
NAME: cert-manager
LAST DEPLOYED: Sat Aug 29 21:32:38 2026
NAMESPACE: cert-manager
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
cert-manager v1.21.1 has been deployed successfully!
In order to begin issuing certificates, you will need to set up a ClusterIssuer
or Issuer resource (for example, by creating a 'letsencrypt-staging' issuer).
More information on the different types of issuers and how to configure them
can be found in our documentation:
https://cert-manager.io/docs/configuration/
For information on how to configure cert-manager to automatically provision
Certificates for Ingress resources, take a look at the `ingress-shim`
documentation:
https://cert-manager.io/docs/usage/ingress/
For information on how to configure cert-manager to automatically provision
Certificates for Gateway API resources, take a look at the `gateway resource`
documentation:
https://cert-manager.io/docs/usage/gateway/Confirm pods are running:
kubectl get pods -n cert-manager
NAME READY STATUS RESTARTS AGE
cert-manager-689c4c5575-jdnxh 1/1 Running 0 87s
cert-manager-cainjector-6fbb9c8cd6-6glvx 1/1 Running 0 87s
cert-manager-webhook-646c95c5ff-h47m5 1/1 Running 0 87sAdd Rancher repo to Helm:
helm repo add rancher-stable https://releases.rancher.com/server-charts/stable
"rancher-stable" has been added to your repositories
helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "longhorn" chart repository
...Successfully got an update from the "rancher-stable" chart repository
...Successfully got an update from the "projectcalico" chart repository
...Successfully got an update from the "jetstack" chart repository
Update Complete. ⎈Happy Helming!⎈Install Rancher via Helm:
helm install rancher rancher-stable/rancher \
--namespace cattle-system \
--create-namespace \
--set hostname=rancher.k3s-lab.homeblab.com \
--set bootstrapPassword=ChangeMe123! \
--set ingress.enabled=false
NAME: rancher
LAST DEPLOYED: Sat Aug 29 19:07:10 2026
NAMESPACE: cattle-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
Rancher Server has been installed. Rancher may take several minutes to fully initialize.
Please standby while Certificates are being issued, Containers are started and the Ingress rule comes up.
Check out our docs at https://rancher.com/docs/

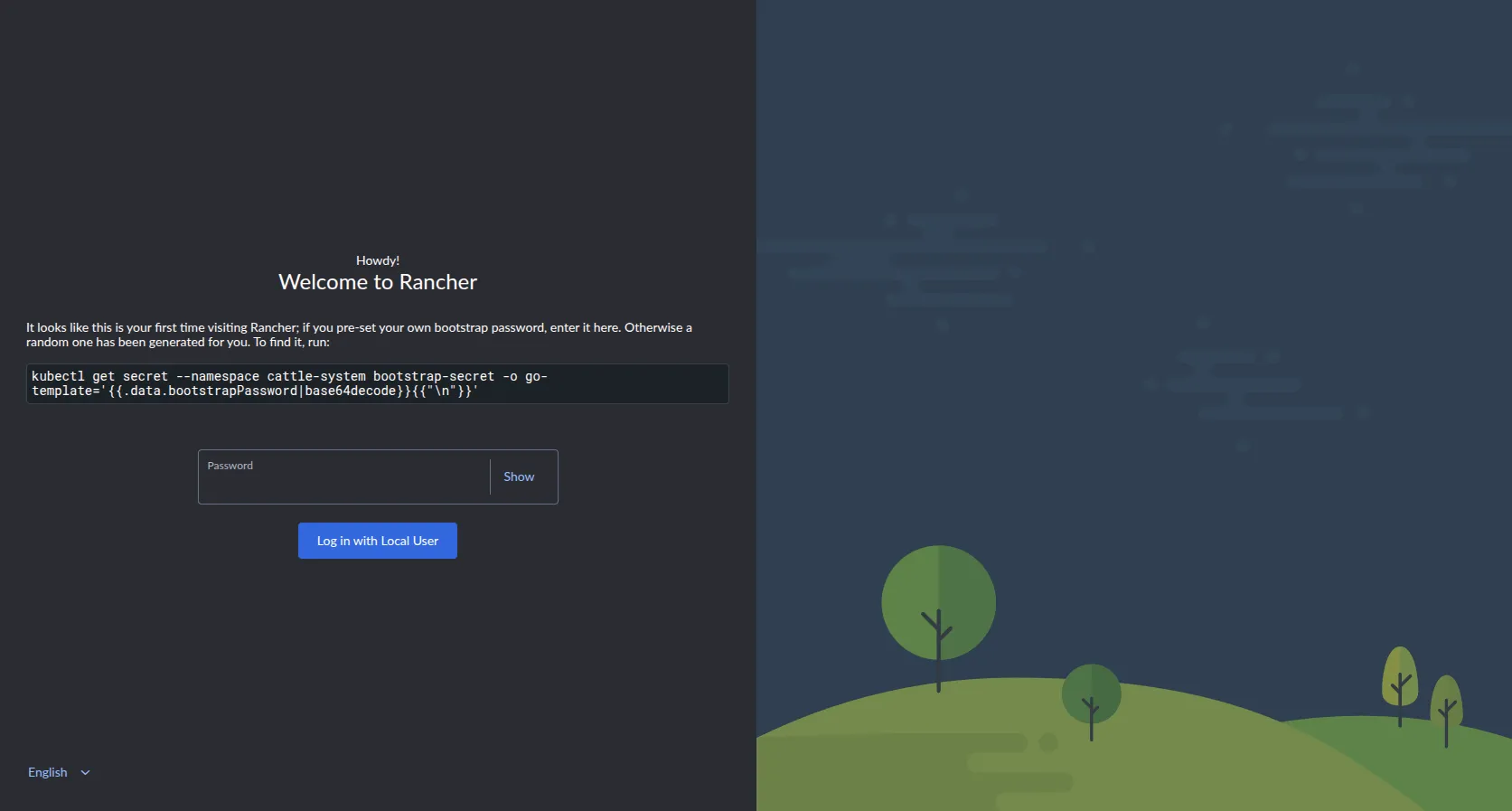

## First Time Login
If you provided your own bootstrap password during installation, browse to https://rancher.k3s-lab.homeblab.com to get started.
If this is the first time you installed Rancher, get started by running this command and clicking the URL it generates:
\`\`\`
echo https://rancher.k3s-lab.homeblab.com/dashboard/?setup=$(kubectl get secret --namespace cattle-system bootstrap-secret -o go-template='{{.data.bootstrapPassword|base64decode}}')
\`\`\`
To get just the bootstrap password on its own, run:
\`\`\`
kubectl get secret --namespace cattle-system bootstrap-secret -o go-template='{{.data.bootstrapPassword|base64decode}}{{ "\n" }}'
\`\`\`ingress.enabled is set to false because we will create an IngressRoute via Traefik to access rancher.k3s-lab.homeblab.com
Let this run and create an IngressRoute for access to the Rancher UI:
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
name: rancher-ipallowlist
namespace: cattle-system
spec:
ipAllowList:
sourceRange:
- 10.1.102.0/24
---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
name: rancher-ui
namespace: cattle-system
spec:
entryPoints:
- web
- websecure
routes:
- match: Host(`rancher.k3s-lab.homeblab.com`)
kind: Rule
services:
- name: rancher
port: 80
middlewares:
- name: rancher-ipallowlistNote the websecure entrypoint, Rancher will auto redirect to HTTPS.
Ensured that all the pods are up and running before interacting with the service:
kubectl get pods -n cattle-system -w
NAME READY STATUS RESTARTS AGE
helm-operation-4qvf5 0/2 Completed 0 3m50s
helm-operation-fpm49 0/2 Completed 0 3m30s
helm-operation-grq95 0/2 Completed 0 4m5s
helm-operation-lbxmq 0/2 Completed 0 2m45s
helm-operation-ms5gq 0/2 Completed 0 2m59s
helm-operation-qm25b 0/2 Completed 0 3m15s
helm-operation-v7zq2 0/2 Completed 0 4m24s
helm-operation-vmj67 0/2 Completed 0 2m22s
rancher-6f9b9d6595-7jkqz 1/1 Running 0 6m18s
rancher-6f9b9d6595-gtc65 1/1 Running 1 (5m9s ago) 6m18s
rancher-6f9b9d6595-sswrv 1/1 Running 0 6m18s

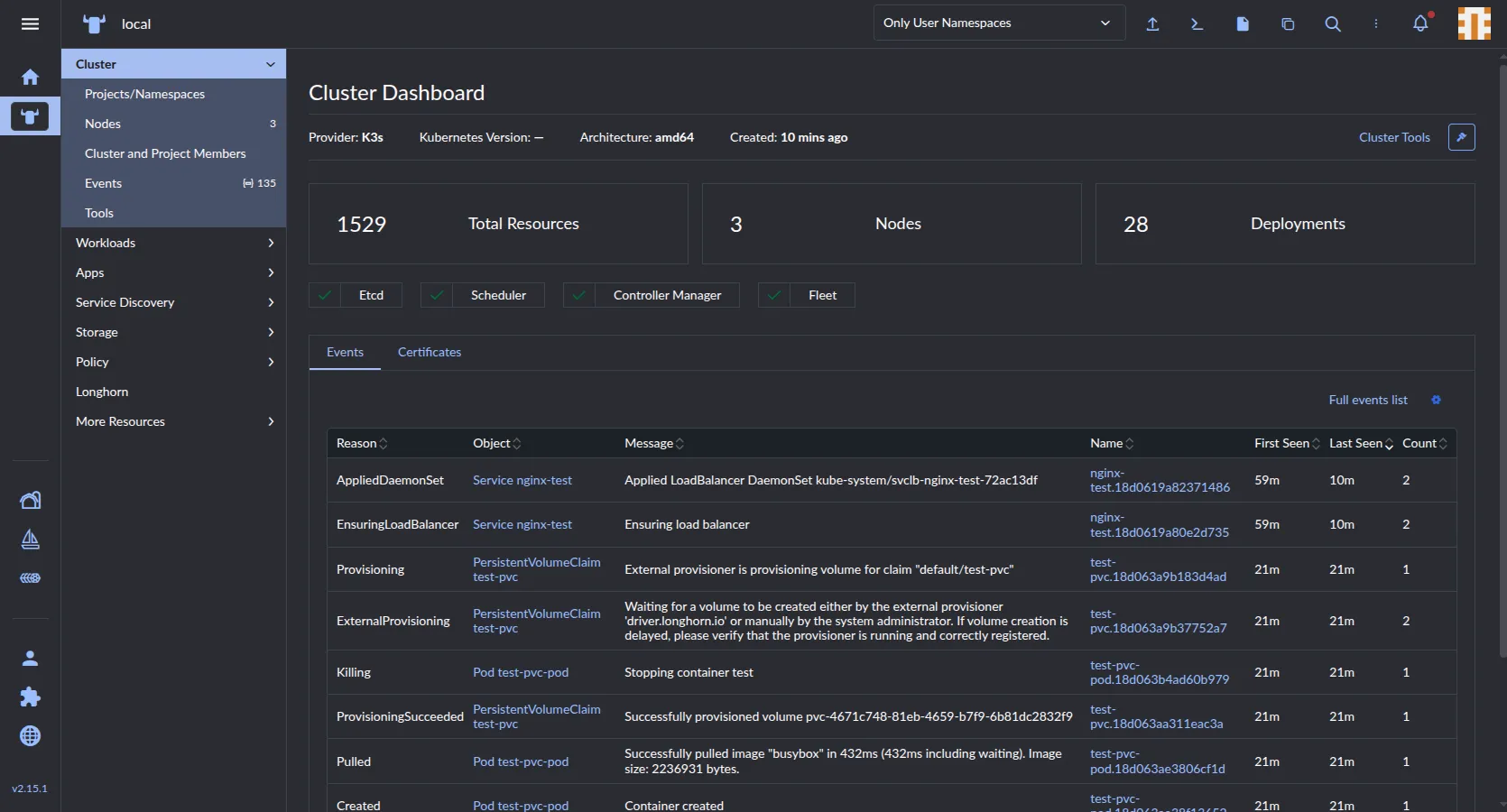

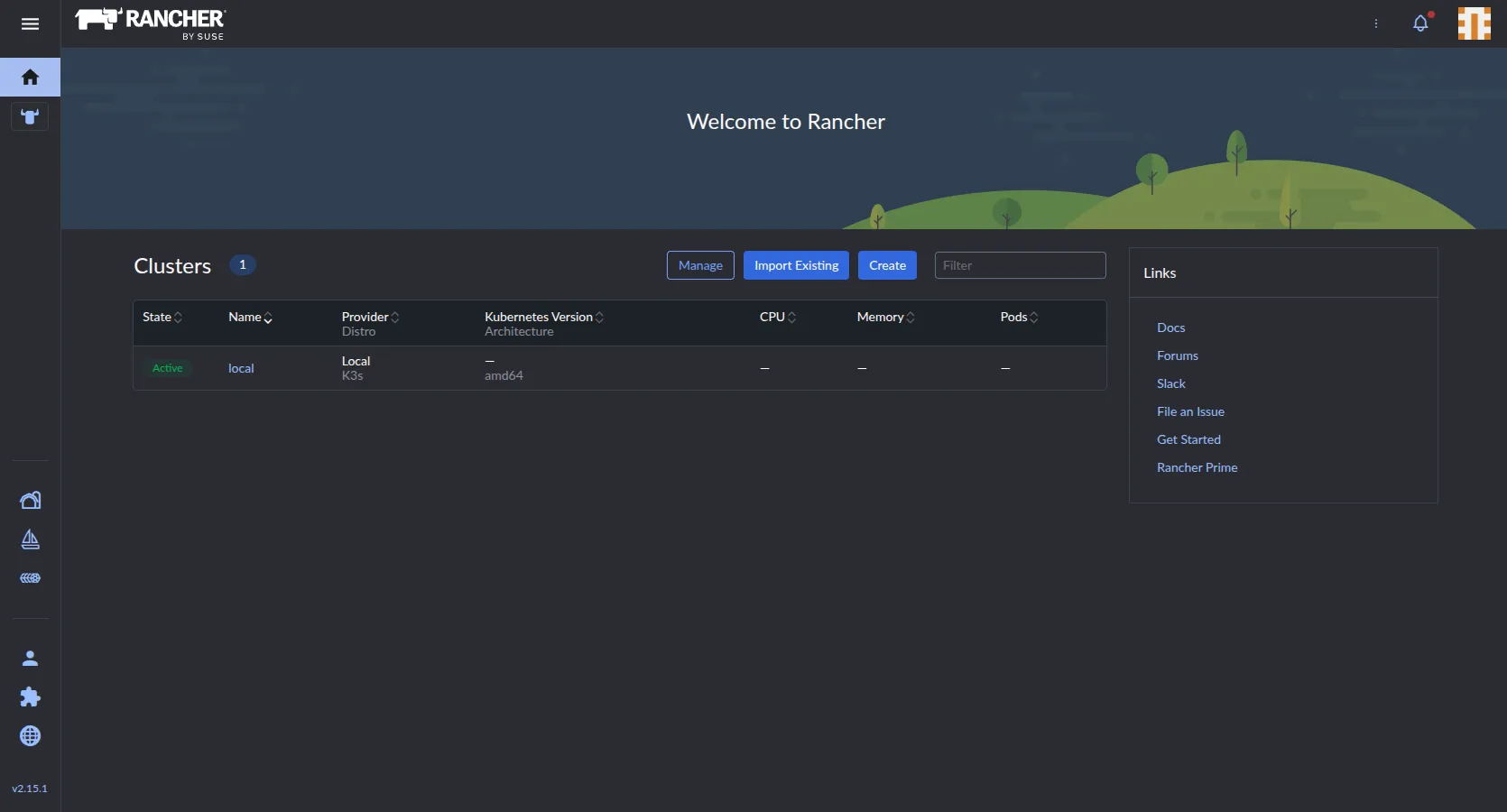

rancher-webhook-84c5997878-hbpdx 1/1 Running 0 2m56sAfter accepting the EULA and going past the bootstrapping options, I was able to get into the Rancher UI and view the cluster.
6. First real app deployment

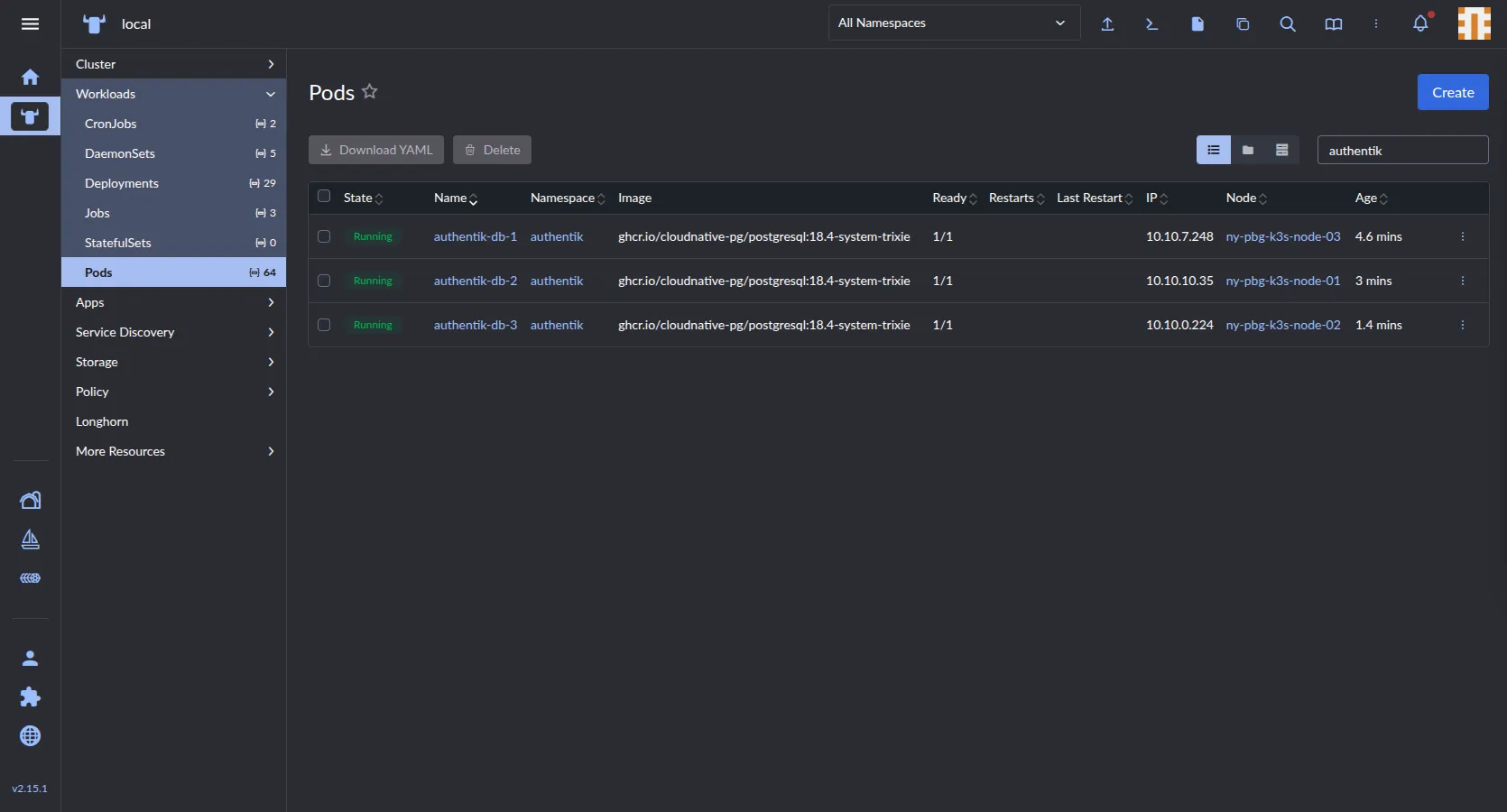

I want to deploy authentik for a IDP for apps within the lab, reading the documentation, it does have a Helm Chart, but bundles in a database useful for testing/demo purposes, but not for production, as I want the lab to stand long term, I’ll be using Cloud Native Postgres deployment to create a DB cluster for Authentik.
I’ll install CNPG:
helm repo add cnpg https://cloudnative-pg.github.io/charts
"cnpg" has been added to your repositories
helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "longhorn" chart repository
...Successfully got an update from the "cnpg" chart repository
...Successfully got an update from the "rancher-stable" chart repository
...Successfully got an update from the "jetstack" chart repository
...Successfully got an update from the "projectcalico" chart repository
Update Complete. ⎈Happy Helming!⎈
helm install cnpg cnpg/cloudnative-pg -n cnpg-system --create-namespace
AME: cnpg
LAST DEPLOYED: Sun Aug 30 16:52:23 2026
NAMESPACE: cnpg-system
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
CloudNativePG operator should be installed in namespace "cnpg-system".
You can now create a PostgreSQL cluster with 3 nodes as follows:
cat <<EOF | kubectl apply -f -
# Example of PostgreSQL cluster
apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
name: cluster-example
spec:
instances: 3
storage:
size: 1Gi
EOF
kubectl get -A cluster
kubectl get pods -n cnpg-system
NAME READY STATUS RESTARTS AGE
cnpg-cloudnative-pg-7d855d69bb-f2rn4 1/1 Running 0 83sNow to provision the Database Cluster for Authentik:
apiVersion: postgresql.cnpg.io/v1
kind: Cluster
metadata:
name: authentik-db
namespace: authentik
spec:
instances: 3
storage:
size: 10Gi
storageClass: longhorn
bootstrap:
initdb:
database: authentik
owner: authentik
secret:
name: authentik-db-credentials
---
apiVersion: v1
kind: Secret
metadata:
name: authentik-db-credentials
namespace: authentik
type: kubernetes.io/basic-auth
stringData:
username: authentik
password: "NOT_FOR_YOU_TO_SEE"Notice the storageClass option is set to longhorn, the storage system setup earlier for stateful storage across the K3s Cluster.
Apply config and watch DB Cluster create:
kubectl create namespace authentik
namespace/authentik created
kubectl apply -f authentik/authentik-db.yaml
cluster.postgresql.cnpg.io/authentik-db created
secret/authentik-db-credentials created
kubectl get pods -n authentik -w
NAME READY STATUS RESTARTS AGE
authentik-db-1-initdb-lqvld 0/1 Init:0/1 0 18s
authentik-db-1-initdb-lqvld 0/1 Init:0/1 0 23s
authentik-db-1-initdb-lqvld 0/1 Init:0/1 0 24s
authentik-db-1-initdb-lqvld 0/1 Init:0/1 0 24s
authentik-db-1-initdb-lqvld 0/1 PodInitializing 0 24s
authentik-db-1-initdb-lqvld 1/1 Running 0 42s
authentik-db-1-initdb-lqvld 0/1 Completed 0 59s
authentik-db-1-initdb-lqvld 0/1 Completed 0 61s
authentik-db-1-initdb-lqvld 0/1 Completed 0 61s
authentik-db-1-initdb-lqvld 0/1 Completed 0 61s
authentik-db-1 0/1 Pending 0 0s
authentik-db-1 0/1 Pending 0 0s
authentik-db-1 0/1 Init:0/1 0 0s
authentik-db-1 0/1 Init:0/1 0 10s
authentik-db-1 0/1 Init:0/1 0 10s
authentik-db-1 0/1 Init:0/1 0 10s
authentik-db-1 0/1 PodInitializing 0 12s
authentik-db-1 0/1 Running 0 12s
authentik-db-1 0/1 Running 0 14s
authentik-db-1 0/1 Running 0 20s
authentik-db-1 1/1 Running 0 21s
authentik-db-2-join-97klg 0/1 Pending 0 0s
authentik-db-2-join-97klg 0/1 Pending 0 0s
authentik-db-2-join-97klg 0/1 Pending 0 2s
authentik-db-2-join-97klg 0/1 Init:0/1 0 2s
authentik-db-2-join-97klg 0/1 Init:0/1 0 24s
authentik-db-2-join-97klg 0/1 Init:0/1 0 24s
authentik-db-2-join-97klg 0/1 Init:0/1 0 28s
authentik-db-2-join-97klg 0/1 PodInitializing 0 28s
authentik-db-2-join-97klg 1/1 Running 0 46s
authentik-db-2-join-97klg 0/1 Completed 0 73s
authentik-db-2-join-97klg 0/1 Completed 0 74s
authentik-db-2-join-97klg 0/1 Completed 0 75s
authentik-db-2-join-97klg 0/1 Completed 0 75s
authentik-db-2 0/1 Pending 0 0s
authentik-db-2 0/1 Pending 0 0s
authentik-db-2 0/1 Init:0/1 0 0s
authentik-db-2 0/1 Init:0/1 0 5s
authentik-db-2 0/1 Init:0/1 0 5s
authentik-db-2 0/1 Init:0/1 0 5s
authentik-db-2 0/1 PodInitializing 0 6s
authentik-db-2 0/1 Running 0 6s
authentik-db-2 0/1 Running 0 11s
authentik-db-2 0/1 Running 0 15s
authentik-db-2 1/1 Running 0 15s
authentik-db-3-join-w6nwh 0/1 Pending 0 0s
authentik-db-3-join-w6nwh 0/1 Pending 0 0s
authentik-db-3-join-w6nwh 0/1 Pending 0 2s
authentik-db-3-join-w6nwh 0/1 Init:0/1 0 2s
authentik-db-3-join-w6nwh 0/1 Init:0/1 0 21s
authentik-db-3-join-w6nwh 0/1 Init:0/1 0 22s
authentik-db-3-join-w6nwh 0/1 Init:0/1 0 36s
authentik-db-3-join-w6nwh 0/1 PodInitializing 0 37s
authentik-db-3-join-w6nwh 1/1 Running 0 55s
authentik-db-3-join-w6nwh 0/1 Completed 0 80s
authentik-db-3-join-w6nwh 0/1 Completed 0 81s
authentik-db-3-join-w6nwh 0/1 Completed 0 81s
authentik-db-3-join-w6nwh 0/1 Completed 0 82s
authentik-db-3 0/1 Pending 0 0s
authentik-db-3 0/1 Pending 0 0s
authentik-db-3 0/1 Init:0/1 0 0s
authentik-db-3 0/1 Init:0/1 0 8s
authentik-db-3 0/1 Init:0/1 0 9s
authentik-db-3 0/1 Init:0/1 0 9s
authentik-db-3 0/1 PodInitializing 0 10s
authentik-db-3 0/1 Running 0 10s
authentik-db-3 0/1 Running 0 15s
authentik-db-3 0/1 Running 0 18s
authentik-db-3 1/1 Running 0 19s
authentik-db-2-join-97klg 0/1 Completed 0 3m14s
authentik-db-1-initdb-lqvld 0/1 Completed 0 4m37s
authentik-db-3-join-w6nwh 0/1 Completed 0 103s
authentik-db-2-join-97klg 0/1 Completed 0 3m14s
authentik-db-3-join-w6nwh 0/1 Completed 0 103s
authentik-db-1-initdb-lqvld 0/1 Completed 0 4m37sI also could watch the status of the pods real time in Rancher under Workloads>Pods, here’s a screenshot after it has completed:
Confirmed cluster health:
kubectl get clusters.postgresql.cnpg.io -n authentik
NAME AGE INSTANCES READY STATUS PRIMARY
authentik-db 7m59s 3 3 Cluster in healthy state authentik-db-1
kubectl get svc -n authentik
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
authentik-db-r ClusterIP 10.43.40.55 <none> 5432/TCP 8m20s
authentik-db-ro ClusterIP 10.43.208.99 <none> 5432/TCP 8m20s
authentik-db-rw ClusterIP 10.43.185.174 <none> 5432/TCP 8m20sConfirmed the disks are replicated across the cluster:
ls -lah /storage/replicas/*
/storage/replicas/pvc-154dede3-5fa6-4a7e-a1ca-a0649db940bf-fc3e0884:
total 357M
drwx------ 2 root root 4.0K Aug 30 16:57 .
drwxr-xr-x 5 root root 4.0K Aug 30 17:00 ..
-rw-r--r-- 1 root root 10G Aug 30 17:08 volume-head-000.img
-rw-r--r-- 1 root root 126 Aug 30 16:57 volume-head-000.img.meta
-rw-r--r-- 1 root root 161 Aug 30 16:57 volume.meta
/storage/replicas/pvc-28f79c3a-11a1-4cc6-8163-3b99f96608d3-0ea00c1b:
total 308M
drwx------ 2 root root 4.0K Aug 30 17:00 .
drwxr-xr-x 5 root root 4.0K Aug 30 17:00 ..
-rw-r--r-- 1 root root 10G Aug 30 17:07 volume-head-000.img
-rw-r--r-- 1 root root 126 Aug 30 17:00 volume-head-000.img.meta
-rw-r--r-- 1 root root 161 Aug 30 17:00 volume.meta
/storage/replicas/pvc-56585e5b-7d15-4a5e-b22d-f925c669c460-d18b7f65:
total 324M
drwx------ 2 root root 4.0K Aug 30 16:59 .
drwxr-xr-x 5 root root 4.0K Aug 30 17:00 ..
-rw-r--r-- 1 root root 10G Aug 30 17:07 volume-head-000.img
-rw-r--r-- 1 root root 126 Aug 30 16:59 volume-head-000.img.meta
-rw-r--r-- 1 root root 161 Aug 30 16:59 volume.metaTime to deploy Authentik, with default IngressRoute disabled and built-in Postgres disabled:
authentik:
secret_key: "MY_SECRETS_ARE_NOT_YOURS"
postgresql:
host: "authentik-db-rw.authentik.svc.cluster.local"
name: "authentik"
user: "authentik"
password: "NOT_FOR_YOU_TO_SEE"
postgresql:
enabled: false
server:
ingress:
enabled: false
redis:
enabled: true
master:
persistence:
storageClass: longhornhelm repo add authentik https://charts.goauthentik.io
"authentik" has been added to your repositories
helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "longhorn" chart repository
...Successfully got an update from the "authentik" chart repository
...Successfully got an update from the "cnpg" chart repository
...Successfully got an update from the "rancher-stable" chart repository
...Successfully got an update from the "jetstack" chart repository
...Successfully got an update from the "projectcalico" chart repository
Update Complete. ⎈Happy Helming!⎈
helm install authentik authentik/authentik \
-n authentik \
-f authentik/authentik-values.yaml
NAME: authentik
LAST DEPLOYED: Sun Aug 30 17:16:01 2026
NAMESPACE: authentik
STATUS: deployed
REVISION: 1
TEST SUITE: None
kubectl get pods -n authentik -w
NAME READY STATUS RESTARTS AGE
authentik-db-1 1/1 Running 0 19m
authentik-db-2 1/1 Running 0 18m
authentik-db-3 1/1 Running 0 16m
authentik-server-6cc6c997dc-nlp94 0/1 Running 0 2m42s
authentik-worker-c68bfc448-vpzvx 0/1 Running 0 2m42s
authentik-server-6cc6c997dc-nlp94 0/1 Running 0 3m30s
authentik-server-6cc6c997dc-nlp94 1/1 Running 0 3m31s
authentik-worker-c68bfc448-vpzvx 0/1 Running 0 3m41s
authentik-worker-c68bfc448-vpzvx 1/1 Running 0 3m41sThe service is marked as ready in Rancher, time to create an IngressRoute:
kubectl get svc -n authentik
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
authentik-db-r ClusterIP 10.43.40.55 <none> 5432/TCP 29m
authentik-db-ro ClusterIP 10.43.208.99 <none> 5432/TCP 29m
authentik-db-rw ClusterIP 10.43.185.174 <none> 5432/TCP 29m
authentik-server ClusterIP 10.43.175.7 <none> 80/TCP,443/TCP 11mapiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
name: authentik-ui
namespace: authentik
spec:
entryPoints:
- web
- websecure
routes:
- match: Host(`idp.k3s-lab.homeblab.com`)
kind: Rule
services:
- name: authentik-server
port: 80kubectl apply -f authentik/authentik-ingressroute.yaml
ingressroute.traefik.io/authentik-ui createdVisiting https://idp.k3s-lab.homeblab.com gets me to the Authentik setup page, it does not redirect to HTTPS by default, I’ll delete the old Ingress Route and create a new one to redirect to HTTPS automatically
kubectl delete ingressroute authentik-ui -n authentik
ingressroute.traefik.io "authentik-ui" deleted from authentik namespaceapiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
name: redirect-https
namespace: authentik
spec:
redirectScheme:
scheme: https
permanent: true
---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
name: authentik-ui-http
namespace: authentik
spec:
entryPoints:
- web
routes:
- match: Host(`idp.k3s-lab.homeblab.com`)
kind: Rule
services:
- name: authentik-server
port: 80
middlewares:
- name: redirect-https
---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
name: authentik-ui-https
namespace: authentik
spec:
entryPoints:
- websecure
routes:
- match: Host(`idp.k3s-lab.homeblab.com`)
kind: Rule
services:
- name: authentik-server
port: 80kubectl apply -f authentik/authentik-ingressroute.yaml
middleware.traefik.io/redirect-https created
ingressroute.traefik.io/authentik-ui-http created
ingressroute.traefik.io/authentik-ui-https createdNow visiting Authentik via HTTP always redirects to HTTPS.
And now a PVC for storing Media like backgrounds and logos:
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: authentik-media-pvc
namespace: authentik
spec:
accessModes:
- ReadWriteOnce
storageClassName: longhorn
resources:
requests:
storage: 1Gikubectl apply -f authentik/authentik-pvc.yaml
persistentvolumeclaim/authentik-media-pvc created
kubectl get pvc -n authentik
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS VOLUMEATTRIBUTESCLASS AGE
authentik-db-1 Bound pvc-154dede3-5fa6-4a7e-a1ca-a0649db940bf 10Gi RWO longhorn <unset> 91m
authentik-db-2 Bound pvc-56585e5b-7d15-4a5e-b22d-f925c669c460 10Gi RWO longhorn <unset> 89m
authentik-db-3 Bound pvc-28f79c3a-11a1-4cc6-8163-3b99f96608d3 10Gi RWO longhorn <unset> 88m
authentik-media-pvc Bound pvc-7cfce7d9-58ab-4bcb-ac7a-c13db2e61358 1Gi RWO longhorn <unset> 18sAdjust the server: section in the values file:
authentik:
secret_key: ""
postgresql:
host: "authentik-db-rw.authentik.svc.cluster.local"
name: "authentik"
user: "authentik"
password: ""
storage:
backend: file
postgresql:
enabled: false
server:
securityContext:
fsGroup: 1000
ingress:
enabled: false
volumes:
- name: media
persistentVolumeClaim:
claimName: authentik-media-pvc
volumeMounts:
- name: media
mountPath: /data
strategy:
type: Recreate
redis:
enabled: true
master:
persistence:
storageClass: longhorn7. Generating a self signed CA cert for Traefik
apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
name: selfsigned-bootstrap
spec:
selfSigned: {}
---
apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
name: homeblab-root-ca
namespace: cert-manager
spec:
isCA: true
commonName: homeblab-root-ca
secretName: homeblab-root-ca-secret
duration: 87600h
issuerRef:
name: selfsigned-bootstrap
kind: ClusterIssuer
---
apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
name: homeblab-ca-issuer
spec:
ca:
secretName: homeblab-root-ca-secretkubectl apply -f cert/homeblab-ca.yaml
clusterissuer.cert-manager.io/selfsigned-bootstrap created
certificate.cert-manager.io/homeblab-root-ca created
clusterissuer.cert-manager.io/homeblab-ca-issuer created
kubectl get certificate -n cert-manager
NAME READY SECRET AGE
homeblab-root-ca True homeblab-root-ca-secret 19sapiVersion: cert-manager.io/v1
kind: Certificate
metadata:
name: wildcard-k3s-lab
namespace: kube-system
spec:
secretName: wildcard-k3s-lab-tls
issuerRef:
name: homeblab-ca-issuer
kind: ClusterIssuer
dnsNames:
- "*.k3s-lab.homeblab.com"
- "k3s-lab.homeblab.com"kubectl apply -f cert/homeblab-wc-cert.yaml
certificate.cert-manager.io/wildcard-k3s-lab created
kubectl get certificate -n kube-system
NAME READY SECRET AGE
wildcard-k3s-lab True wildcard-k3s-lab-tls 23spiVersion: traefik.io/v1alpha1
kind: TLSStore
metadata:
name: default
namespace: kube-system
spec:
defaultCertificate:
secretName: wildcard-k3s-lab-tlskubectl apply -f cert/traefik.yaml
tlsstore.traefik.io/default created
